Eyelets and grommets for banners, tarpaulins, paper and textile products, in five common inner diameters and three materials.

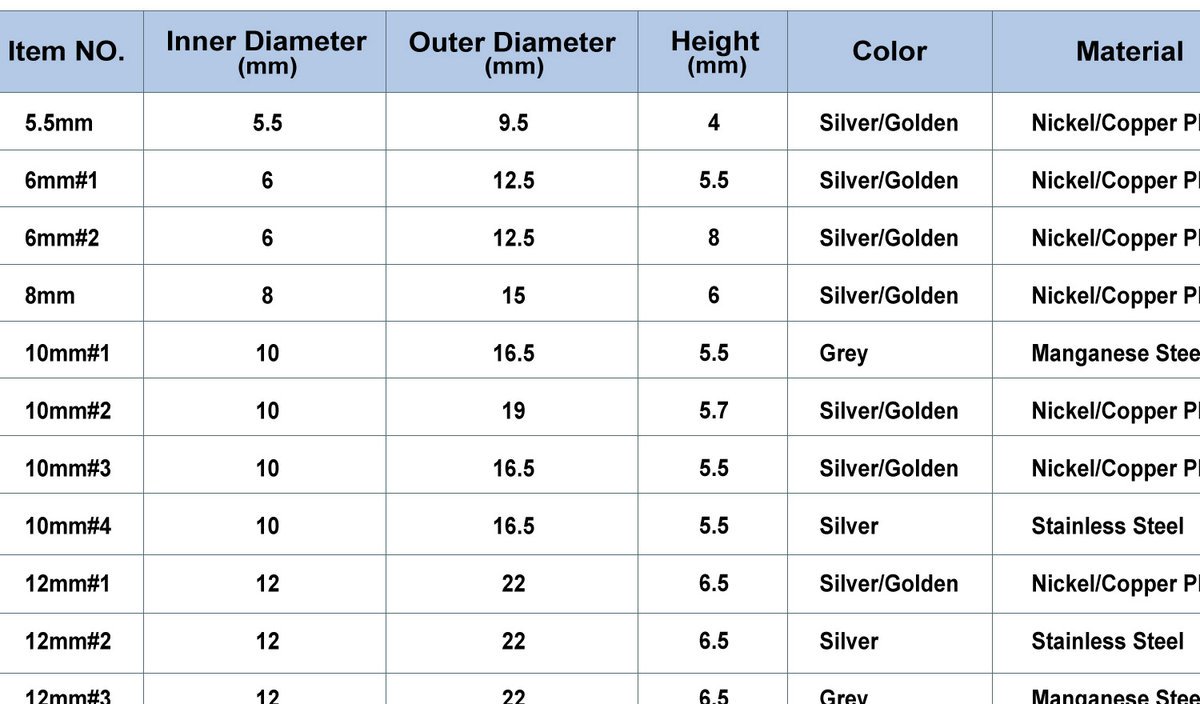

Size range
| Item No. | Inner diameter (mm) | Outer diameter (mm) | Height (mm) | Colour | Material |
|---|---|---|---|---|---|
| 5.5 mm | 5.5 | 9.5 | 4 | Silver/Golden | Nickel copper plated |
| 6 mm #1 | 6 | 12.5 | 5.5 | Silver/Golden | Nickel copper plated |
| 6 mm #2 | 6 | 12.5 | 8 | Silver/Golden | Nickel copper plated |
| 8 mm | 8 | 15 | 6 | Silver/Golden | Nickel copper plated |
| 10 mm #1 | 10 | 16.5 | 5.5 | Grey | Manganese steel |
| 10 mm #2 | 10 | 19 | 5.7 | Silver/Golden | Nickel copper plated |
| 10 mm #3 | 10 | 16.5 | 5.5 | Silver/Golden | Nickel copper plated |
| 10 mm #4 | 10 | 16.5 | 5.5 | Silver | Stainless steel |
| 12 mm #1 | 12 | 22 | 6.5 | Silver/Golden | Nickel copper plated |
| 12 mm #2 | 12 | 22 | 6.5 | Silver | Stainless steel |
| 12 mm #3 | 12 | 22 | 6.5 | Grey | Manganese steel |
Key features
- Five inner diameters — 5.5 mm, 6 mm, 8 mm, 10 mm and 12 mm
- Three materials — nickel copper plated, stainless steel and manganese steel
- Silver and golden finishes for standard work; grey marks the manganese steel sizes
- Matched to the grommet machines in the range, which take 5.5 mm to 12 mm dies
Machine views
Ordering
Various sizes are available. Tell us the inner diameter, finish and material you need and we will confirm availability.
