W-900
LD750A Electrical Automatic Grommet Machine
Bench-top electric grommet machine, 750 W and 80-120 pcs/min, with foot pedal control, auto-feeding eyelets and 5.5-12 mm dies.
Floor-standing electric grommet machine for continuous banner and tarpaulin punching. It can be run on the table with the foot pedal or on the floor with the castors, and holds enough charge for 5,000-7,000 eyelets on a full battery.
Machine parameters
| Item | Value |
|---|---|
| Model | LD750B |
| Rated voltage | 120 VAC / 230 VAC |
| Frequency | 50-60 Hz |
| Power | 750 W |
| Punching speed | 80-120 pcs/min |
| Punching thickness | up to 4 mm (depending on the material) |
| Size | 12 mm, 10 mm, 8 mm, 6 mm, 5.5 mm |
| Weight | 38 kg |
| Dimension | 65 × 52 × 55 cm |
Key features
- Works both on the table with the foot pedal and on the floor with the wheels
- Battery powered — mains or battery, with 5,000-7,000 eyelets per full charge
- Punching pressure adjustable to suit different material and thickness

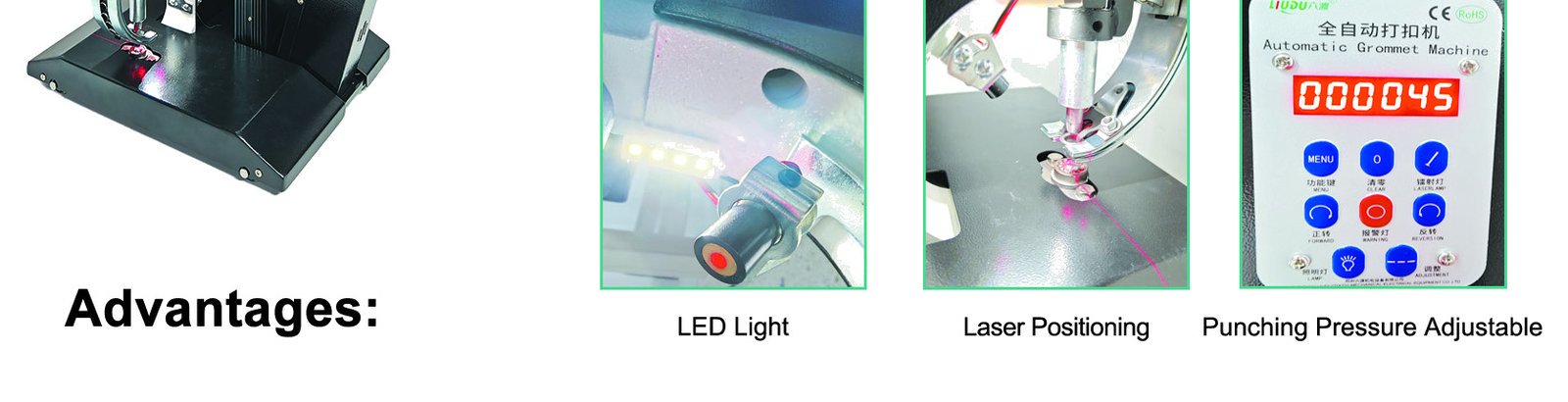

- LED light and laser positioning for convenient, accurate punching
- Rotating hopper — automatic punching without buckling

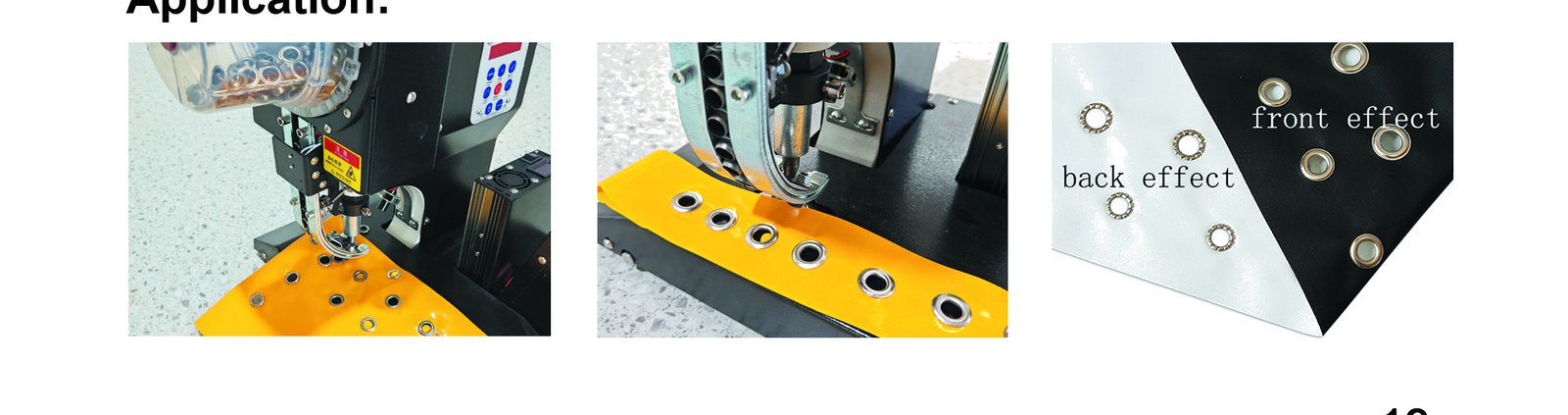

- Wide usage — advertising banner, tarp, tarpaulin, paper, name card holder, handbag, PVC packaging bag, computer pad and cloth tag
Machine views
In the field
