W-900
LD750B Electrical Automatic Grommet Machine
Floor-standing electric grommet machine, 750 W and 80-120 pcs/min, with 5.5-12 mm dies, LED light, laser positioning and battery operation.
Bench-top electric grommet machine for banner and tarpaulin punching with a foot pedal, so both hands stay on the material. Direct-drive servo motor, and a feeding box that sorts the eyelets automatically.
Machine parameters
| Item | Value |
|---|---|
| Model | LD750A |
| Rated voltage | 120 VAC / 230 VAC |
| Frequency | 50-60 Hz |
| Power | 750 W |
| Punching speed | 80-120 pcs/min |
| Punching thickness | up to 4 mm (depending on the material) |
| Size | 12 mm, 10 mm, 8 mm, 6 mm, 5.5 mm |
| Weight | 24 kg |
| Dimension | 54 × 45 × 27 cm |
Key features
- Powered by electricity — environmentally friendly and portable, with high punching pressure
- Direct drive servo motor — energy saving with higher efficiency
- Punching pressure adjustable for different material and thickness
- Feeding box rotates and the eyelets drop automatically, smoothly and without sticking; no need to brush the inside, maintenance free

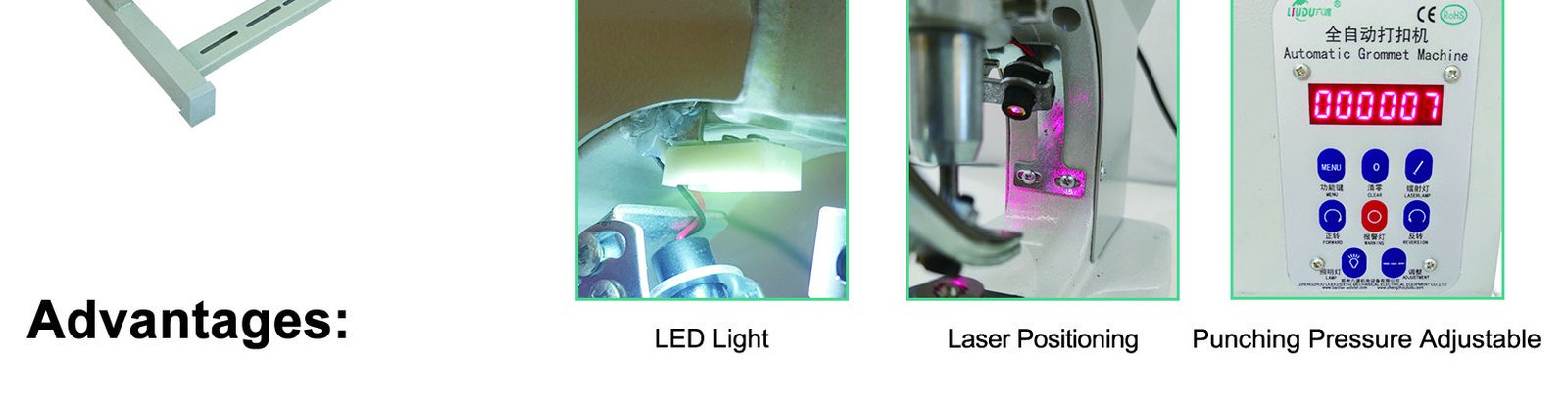

- Laser positioning and LED light for accurate punching and convenient work
- Foot pedal control suits high-volume work and long working hours

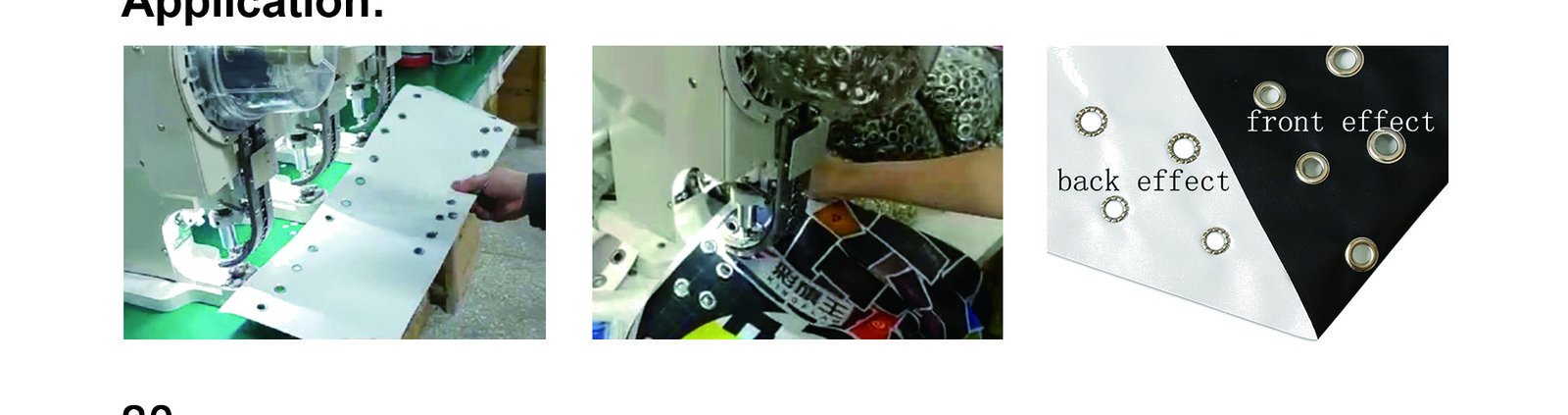

- Wide usage — advertising banner, tarp, tarpaulin, paper, name card holder, handbag, PVC packaging bag, computer pad and cloth tag
Machine views
In the field
