LD-XY1300A XY Cutting Machine
Compact XY cutting plotter with 1,300 mm cutting width, 700 W power and 18 m/min speed for PP paper, wallpaper and car stickers.
XY cutting plotter for printed media, with a 1,540 mm maximum cutting width and a servo drive that holds accuracy across long runs. Two sets of self-sharpening X cutters and a colour sensor handle printed registration.
Machine parameters
| Item | Value |
|---|---|
| Voltage | 220-230 V |
| Power | 500 W |
| Frequency | 50-60 Hz |
| Net weight | 385 kg |
| Maximum cutting width | 1,540 mm |
Key features
- Lateral angle correction — more accurate X cutting
- Two sets of self-sharpening X cutters for longer cutter life
- Colour sensor detection — higher accuracy on Y correction and cutting
- Y cutter — 10 standard cutters, more can be added to suit the job; minimum cutting width 45 mm
- Cutting modes — both single cutting and double cutting modes are available
- Cutting size — the same roll material can be cut into different lengths automatically
- Air shaft — auto-locks the roll and gives convenient feeding with no material deviation
- Servo motor — higher power, higher efficiency and guaranteed cutting accuracy
- Simple operation — no computer or internet needed; print the mark lines and cut

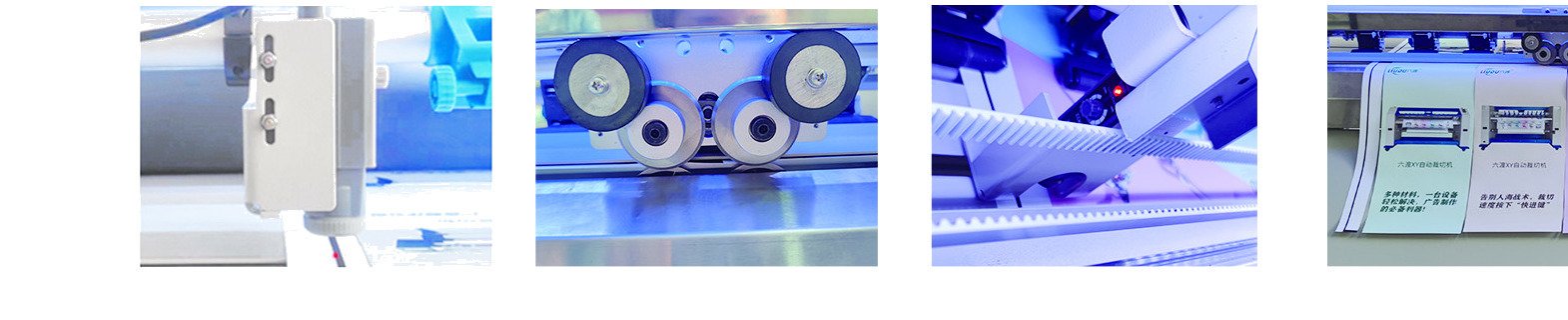

Machine views
Where it fits
Suitable for printing material of all kinds: photo paper, car stickers, oil canvas, PP photo paper, non-woven fabrics, wallpaper, PVC tablecloth and similar roll media.
