W-900
LD-914 Stand Banner Cutting & Grommet Machine
Combined banner cutter and grommet punch with electric eye scanning, 800 W, 925 mm cutting width and 0.1 mm adjustable accuracy.
Automated mounting and cutting line for board and print finishing work. The machine feeds, corrects, grooves and cuts in one pass, with an automatic jointing function that lets longer panels be built without breaking the printed pattern.
Machine parameters
| Item | Value |
|---|---|
| Voltage | 220-230 V |
| Power | 1,000 W |
| Air pressure | 0.8 MPa |
| Y correction range | 100 mm |
| Groover angle | 120° |
| Roller diameter | 130 mm |
| Max feeding speed | 20 m/min |
| Correction precision | ±0.5 mm |
| X correction range | 40 mm |
| Min cutting width | 4.5 cm |
| Size | 5,100 × 2,240 × 1,700 mm |
Key features
- Automatic cutting, correction and detection with XY correction and XY bleed cutting
- Keeps the edge and joints the membrane with an automatic jointing function
- Unattended operation for up to 25 boards
- High working efficiency — replaces around 3-5 manual operators
- Both sides laminated, with automatic jointing and grooving
- Joints the board without breaking the pattern
- Unlimited size jointing between cutting start and end
- Special-shaped cutting for different board profiles
- Wide applications — KT board, PVC board and PVC expansion board

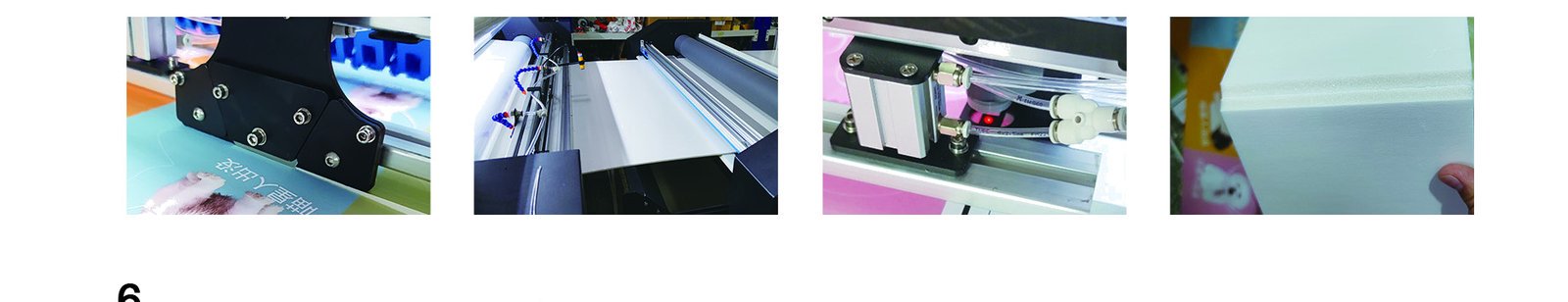

Machine views
Where it fits
Built for sign and display board production, where the same machine has to mount, correct, groove and cut without losing registration on the printed image.
