W-900
Automatic Mounting and Cutting Machine
Automated mounting and XY cutting line with edge correction and grooving, 1,000 W and 20 m/min feed for KT board and PVC board finishing.
Stand-mounted banner cutting and grommet punching machine for roll-to-roll finishing. An electric eye scanning system reads the printed image, so the machine cuts to the printed register rather than to a fixed mark, and the same head punches grommets and applies stickers.
Machine parameters
| Item | Value |
|---|---|
| Voltage | 220-230 V |
| Rated power | 800 W |
| Frequency | 50-60 Hz |
| Max cutting material width | 925 mm |
| Min adjustable accuracy | 0.1 mm |
| Specifications | 2,030 × 750 × 1,200 mm |
Key features
- Electric eye scanning system with multi-functional cutting, punching, sticker application and edge cleaning
- Automatic material feeding in one continuous process
- High efficiency — roughly 4-8 finished pieces per minute
- One operator can run the machine, replacing the several people a manual cut-punch-stick line needs
- Low energy and small footprint — 800 W, and under 2 m² of floor space
- Colour recognition simplifies the designer’s workflow and avoids cutting to the wrong pattern
- Double sets of self-sharpening X cutters stay sharp without manual sharpening
- 925 mm cutting width covers the common photo and banner formats
- Simple operation and easy setup

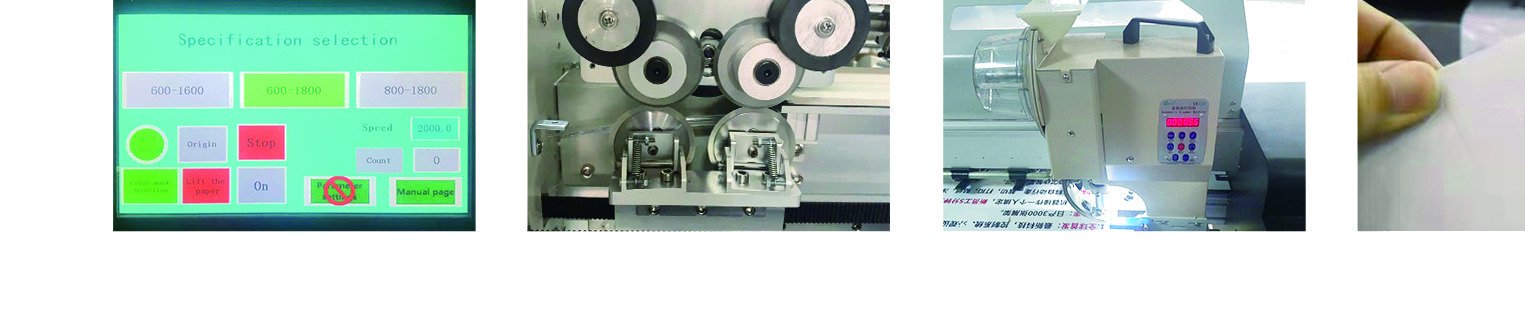

Machine views
Where it fits
For banner and photo-finishing shops that cut, punch and sticker the same printed roll, doing all three operations on one machine removes the re-registration step between them.
