LD-XY1600A XY Cutting Machine
XY cutting plotter with 1,600 mm cutting width, 700 W power and 18 m/min speed for PP paper, photo paper, wallpaper and car stickers.
Compact XY cutting plotter with a 1,300 mm cutting width and the same 18 m/min drive as the larger models, for shops whose roll media rarely exceeds 1.3 m.
Machine parameters
| Item | Value |
|---|---|
| Voltage | 110 V / 220 V |
| Frequency | 50-60 Hz |
| Power | 700 W |
| Max speed | 18 m/min |
| Max cutting width | 1,300 mm |
Key features
- Lateral angle correction for accurate X cutting
- Colour sensor detection for higher accuracy on Y correction and cutting
- Two pieces round X cutters with long service life
- Y cutter — 10 standard cutters, more can be added as needed; minimum cutting width 45 mm
- Cutting modes — both single cutting and double cutting modes available
- Cutting size — the same roll material can be cut into different lengths automatically
- Servo motor — stronger power, higher efficiency, more precise and guaranteed cutting accuracy
- Simple operation — no computer or internet needed; print the mark lines and cut
- Small volume — takes less than 2 m², saving floor space

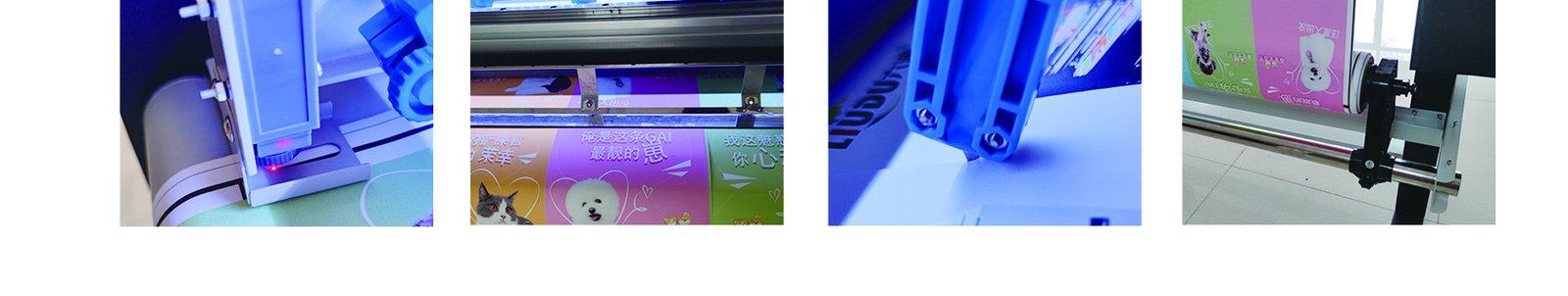

Machine views
Where it fits
XY cutting machines are widely used for automatic cutting of PP paper, photo paper, wallpaper, car stickers and films, where high speed, high accuracy and easy operation matter more than maximum width.
