YUZHISHENG
TOP4500 Multi-Function Hot Air Welding Machine / Automated
TOP4500 Multi-Function Hot Air Welding Machine
TOP4500 Multi-Function Hot Air Welding Machine
TOP4500 Multi-Function Hot Air Welding Machine
TOP4500 Multi-Function Hot Air Welding Machine

Automated · Hot air (rope, hem, butt-joint, overlap)

TOP4500 Multi-Function Hot Air Welding Machine

Self-propelled hot air welder with 4,500 W heating, 20-700 °C and 1-15 m/min for rope, hemming, butt-joint and overlap welds on coated fabric.

Weld speed1-15 m/min
Seam width2-4.5 cm
Temperature20-700 °C
MaterialsPVC, HDPE, TPO, coated fabric, tarpaulin
Request a quote →

PRODUCT DESCRIPTION

About this
machine.

Self-propelled hot air welding machines for multi-function jointing: rope welding, hemming, butt-joint welding and overlap welding on coated fabrics. The TOP4500 multi-function series runs an imported heating element with a brushless fan and a digital constant-temperature control system, and adds a guide wheel for following seams and edges.

Key features

  • Power — 4,500 W, 230 VAC 50⁄60 Hz
  • Weld window — 20-700 °C working temperature, 1-15 m/min travel speed
  • Seam width — 2-4.5 cm in a single pass
  • Machine weight — 30 kg
  • Four welding modes — rope welding, hemming welding, butt-joint welding and overlap welding with the same machine
  • Guide wheel for accurate seam following
  • Imported heating element with brushless fan for long service life
  • Dormancy and slow-start functions protect the heater and save power

Machine views

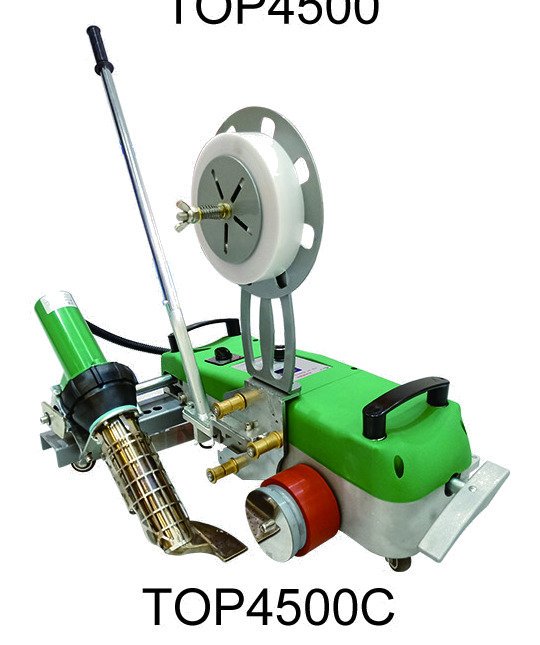

TOP4500 multi-function hot air welding machine, second view

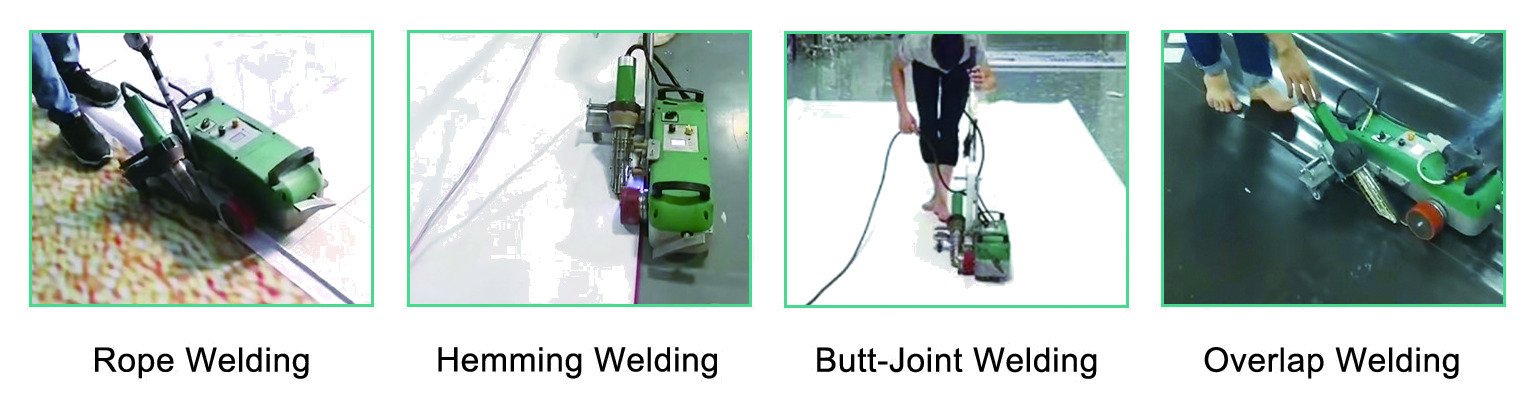

TOP4500 multi-function heater, guide wheel and control panel

In the field

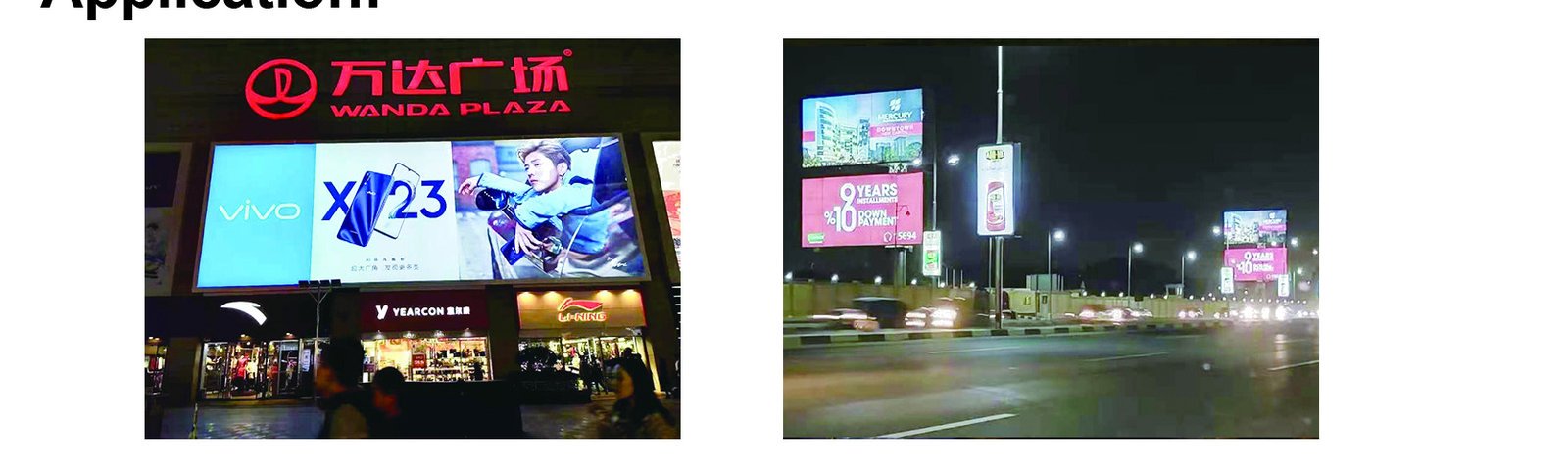

TOP4500 multi-function welder in use on an outdoor advertising structure

One machine covers rope, hem, butt-joint and overlap seams, which keeps a fabrication shop from switching welders between jobs.

TECHNICAL DATA

Specifications.

Figures are typical for standard configuration.

Model

TOP4500 / TOP4500C

Welding method

Hot air (rope, hem, butt-joint, overlap)

Weld speed

1-15 m/min

Seam width

2-4.5 cm

Temperature range

20-700 °C

Materials

PVC, HDPE, TPO, coated fabric, tarpaulin

Power supply

230 VAC, 4,500 W, 50/60 Hz

Weight

30 kg

WHERE IT WORKS

Where this
machine earns.

From wide-field liner installation to detail work at penetrations, the same closed-loop control holds the weld window open in real site conditions.

Overlap welding Butt-joint welding Hemming Rope welding Coated fabric
Discuss your application →
