LC3000 Basic Hot Air Welding Machine

Entry-level self-propelled hot air welding machines for smaller workshops and lighter duty cycles. The LC3000 series keeps the welded-seam essentials — constant temperature control, slow start and dormancy — in a machine that weighs 13-15 kg and can be run from a single-phase supply.

Key features

• Power options — 1,200 W (LC3000A), 1,800 W (LC3000C) or 2,600 W (LC3000D)
• Voltage — ¹²⁰⁄₂₃₀ VAC (LC3000A, LC3000C) or 230 VAC (LC3000D), ⁵⁰⁄₆₀ Hz
• Weld window — 20-700 °C working temperature, 0.5-8 m/min travel speed
• Seam width — 2-4 cm, with a 4 cm (LC3000A/C) or 5 cm (LC3000D) pressing wheel
• Machine weight — 13 kg / 14 kg / 15 kg
• Heating element — made in China (LC3000A) or imported (LC3000C, LC3000D)

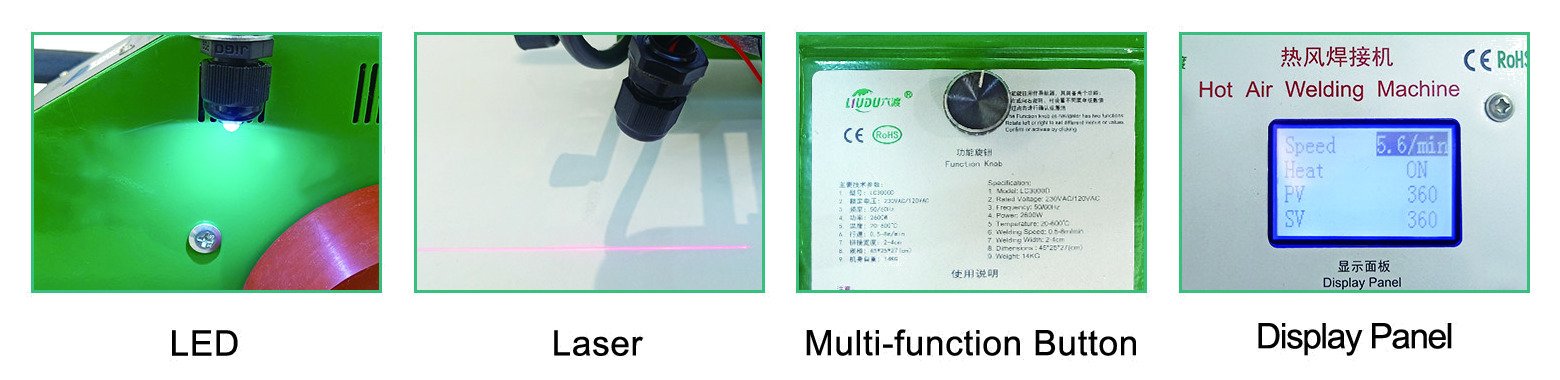

• Handrail, LED and laser guide depending on model
• Dormancy and slow-start functions protect the heater and save power

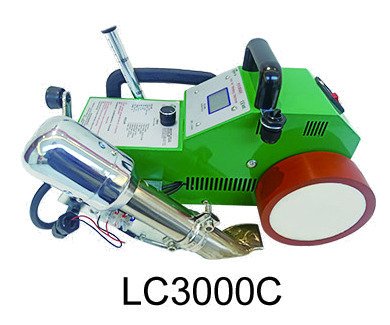

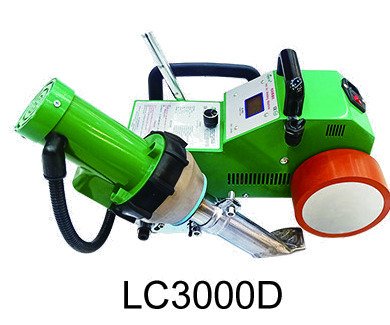

Machine views

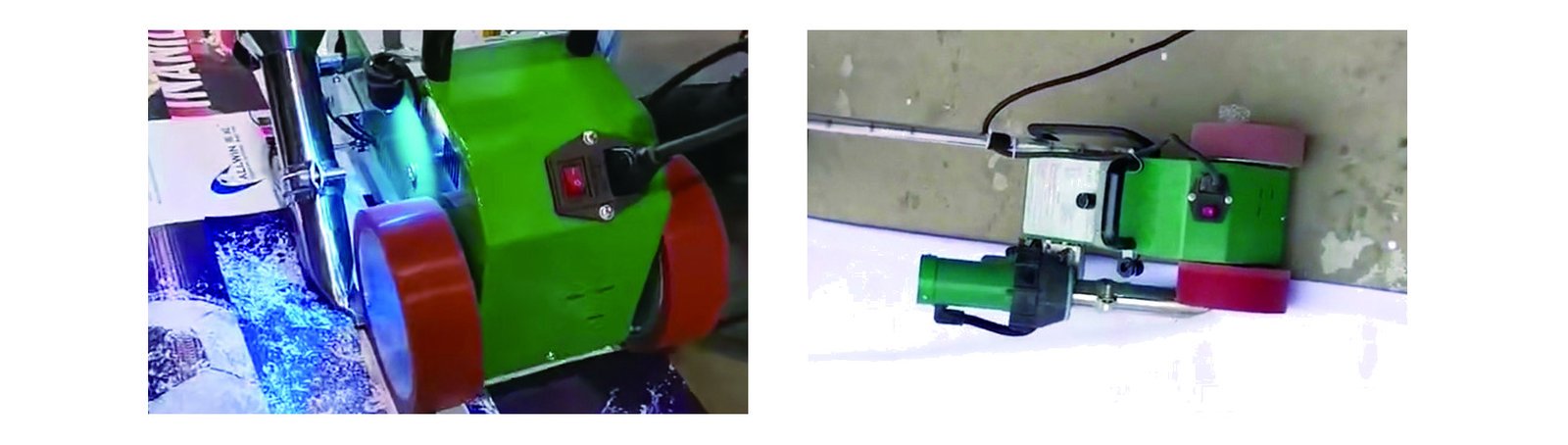

In the field

The lightest machine in the range, and the usual entry point for a workshop moving from hand welding to a self-propelled welder.
