TOP3400 High-End Hot Air Welding Machine / Automated
TOP3400 High-End Hot Air Welding Machine
TOP3400 High-End Hot Air Welding Machine
TOP3400 High-End Hot Air Welding Machine
TOP3400 High-End Hot Air Welding Machine

Automated

TOP3400 High-End Hot Air Welding Machine

High-end self-propelled welder, 3,600 W and 20-670 °C at 1-15 m/min, with Leister or imported heat gun, laser guide and digital display.

Weld speed1-15 m/min
Seam width2-4.5 cm
Temperature20-670 °C
MaterialsPVC, technical textiles, tarpaulin
Request a quote →

PRODUCT DESCRIPTION

About this
machine.

High-end self-propelled hot air welding machines for banner and technical textile production. The TOP3400 series pairs a 3,600 W heating system with a digital display panel and an imported heat gun, and is available with either a Leister gun (TOP3400B) or a factory-fitted imported gun (TOP3400C).

Key features

  • Power — 3,600 W, 230 VAC 50⁄60 Hz
  • Weld window — 20-670 °C working temperature, 1-15 m/min travel speed
  • Seam width — 2-4.5 cm in a single pass
  • Machine weight — 28 kg
  • Heat gun options — Leister (TOP3400B) or imported (TOP3400C)
  • Brushless fan on TOP3400C for long service life
  • Digital display panel shows speed, heat, PV and SV in real time
  • Supplied with a lifter, handrail, laser guide, LED light, rope welding accessory and balance system
  • Dormancy and slow-start functions protect the heater and save power

Machine views

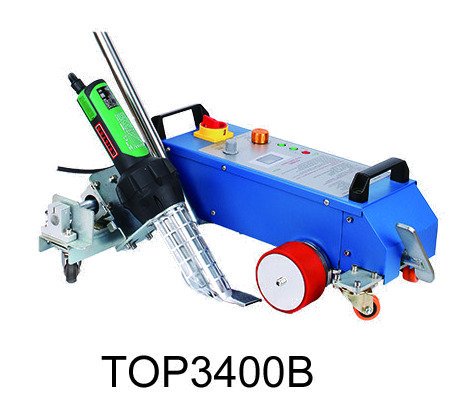

TOP3400 high-end hot air welding machine, second view

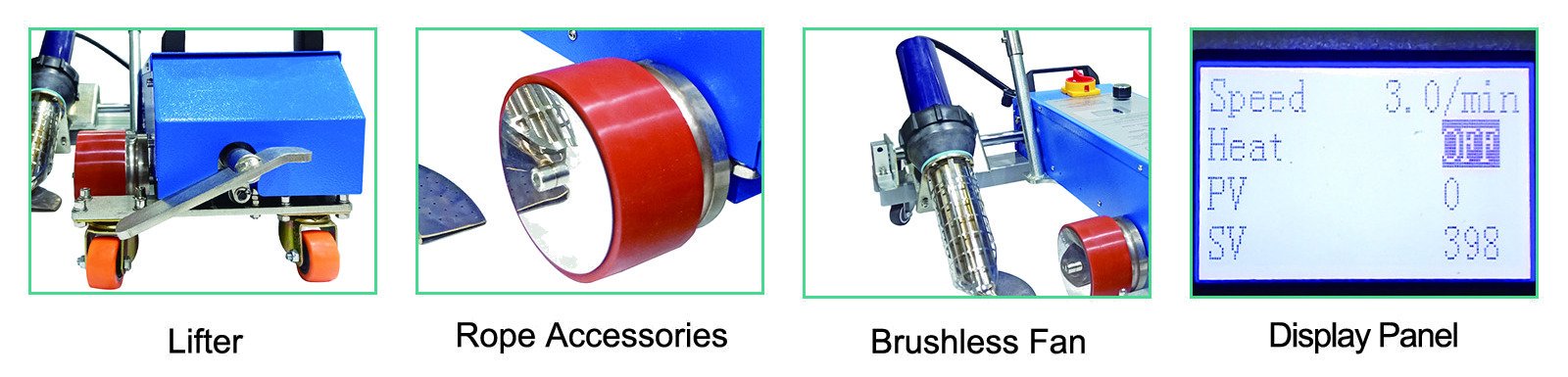

TOP3400 lifter, rope accessories, brushless fan and display panel

In the field

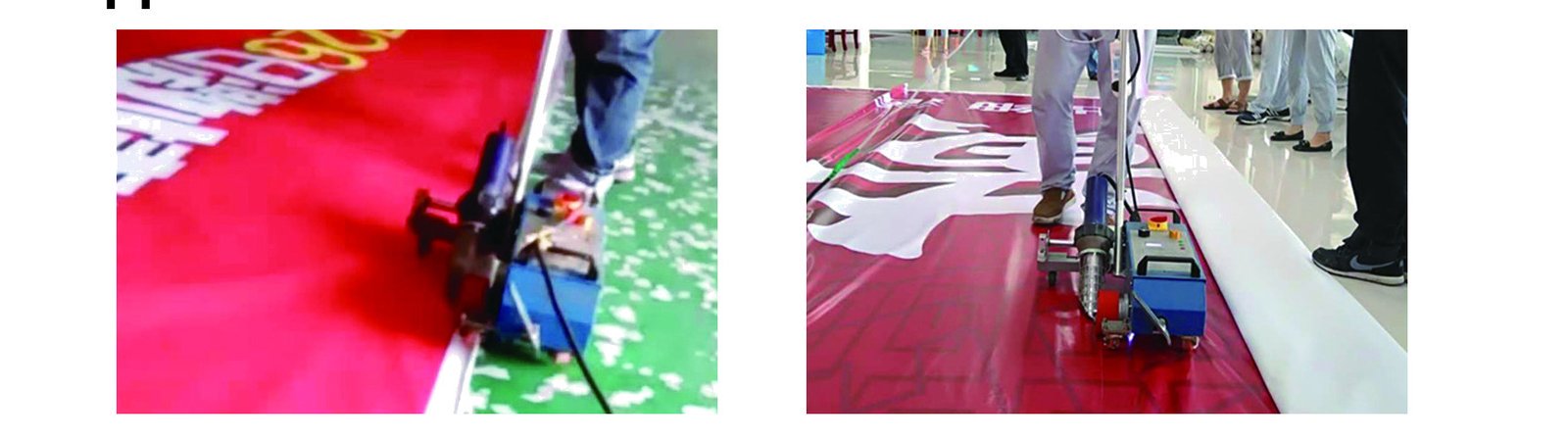

TOP3400 high-end welder in use on a printed banner

Built for shops that run a mixed job book: the same machine handles wide banner seams and narrower technical fabric work without changing the setup.

TECHNICAL DATA

Specifications.

Figures are typical for standard configuration.

Model

TOP3400B / TOP3400C

Weld speed

1-15 m/min

Seam width

2-4.5 cm

Temperature range

20-670 °C

Materials

PVC, technical textiles, tarpaulin

Power supply

230 VAC, 3,600 W, 50/60 Hz

Weight

28 kg

WHERE IT WORKS

Where this
machine earns.

From wide-field liner installation to detail work at penetrations, the same closed-loop control holds the weld window open in real site conditions.

Technical textiles Banner fabrication Coated fabric Tarpaulin
Discuss your application →

HDPE LLDPE PVC TPO EVA PP HDPE LLDPE PVC
